Application Servers

Build and Deploy WAR Files

Use the standard Maven WAR plugin and the supplied OpenRules project files to create an application-server deployment from a tested model.

Sample project

Build from VacationDaysServlet.

The installed VacationDaysServlet project demonstrates WAR packaging for the tested Vacation Days model. Add deployment=war to project.properties, then run package.bat or Maven directly.

mvn clean package war:war

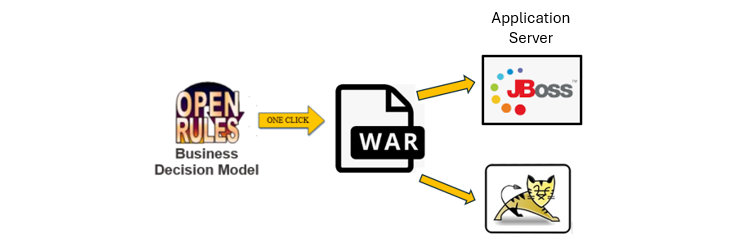

OpenRules decision model packaged as a WAR and deployed to an application server — WAR deployment workflowOpen full size ↗

VacationDaysServlet project properties with WAR deployment — Enable WAR deploymentOpen full size ↗

Maven configuration

Control the archive name and service endpoint.

The project’s pom.xml configures maven-war-plugin and defines the WAR context name. The decision service endpoint comes from the model Environment table and can be overridden with model.endpoint in project.properties.

Maven WAR plugin configuration in pom.xml — Maven WAR plugin configurationOpen full size ↗

Deploy and test

Install the WAR like any Java web application.

For Apache Tomcat, copy the generated WAR file to webapps and start Tomcat. Open the application context URL to see the decision service endpoint.

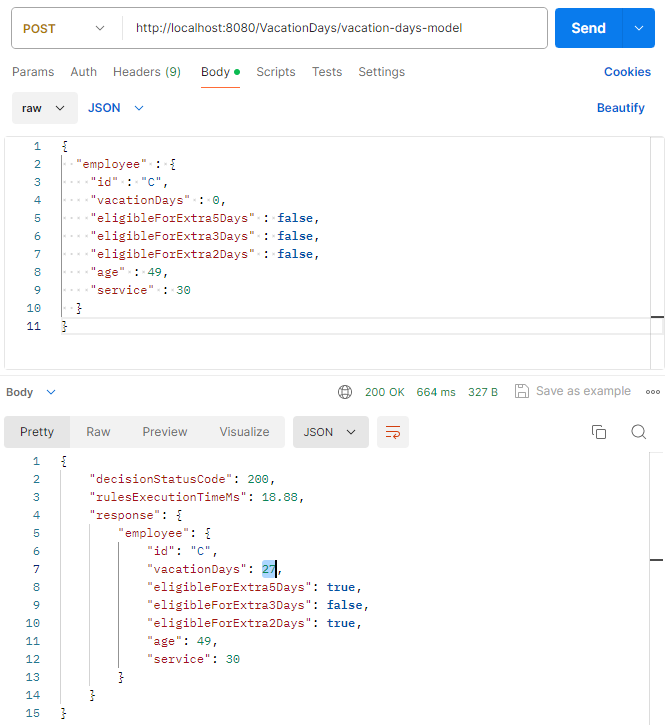

Send a POST request with generated JSON test data using POSTMAN or another HTTP client. The same WAR can be deployed through the standard facilities of JBoss, WebLogic, WebSphere, and other compatible servers.
