Service Deployment

RESTful Web Services

Turn the same Excel-based decision model into an HTTP service that accepts JSON requests and returns explainable decision results.

Two deployment options

Select the runtime without changing the rules.

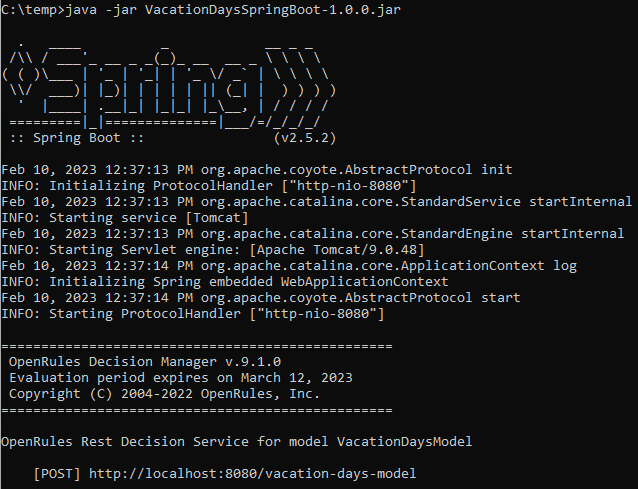

OpenRules REST is a lightweight implementation based on Undertow; the sample project is VacationDaysRest. The Spring Boot option uses VacationDaysSpringBoot. Both samples are included with OpenRules.

Add deployment=rest or deployment=spring-boot to project.properties, then run runLocalServer.bat. The first run installs the required framework libraries, builds the model, and starts the local endpoint.

OpenRules decision model deployed as a RESTful web service — Decision model to RESTful serviceOpen full size ↗

Local testing

Exercise the endpoint with the supplied tests.

Run testLocalServer.bat to send a generated request to the service. Results appear in both the server and client consoles.

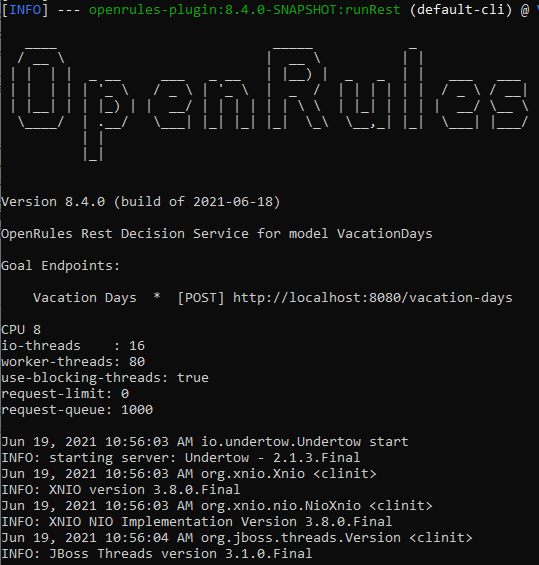

OpenRules REST local server console — Local REST serverOpen full size ↗

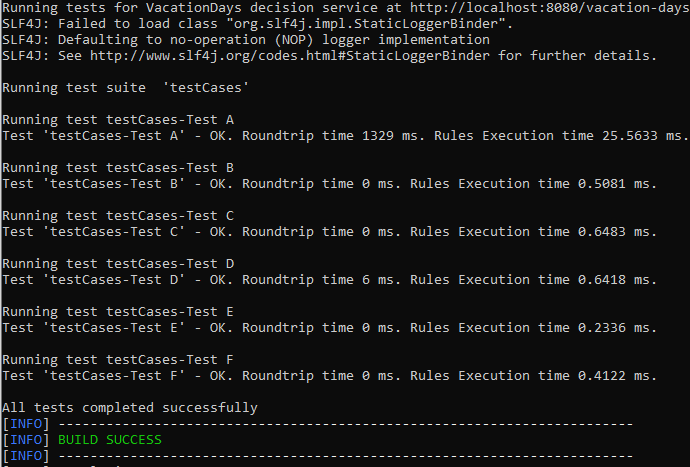

OpenRules REST client and server test output — Generated REST testOpen full size ↗

Clients and packaging

Call from Java or ship an executable JAR.

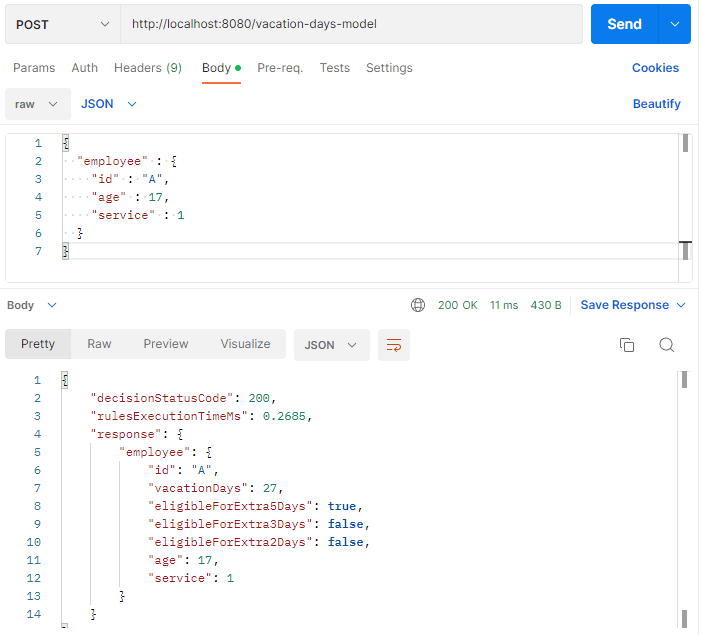

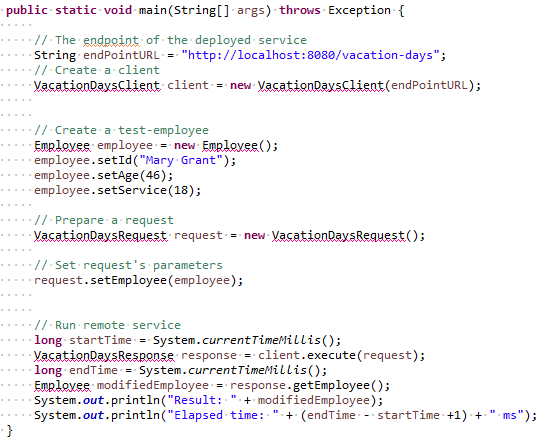

SampleGeneratedClient.java shows how a Java application invokes the deployed decision service. The service can also be exercised with POSTMAN.

Run package.bat to create an executable JAR in target. Start that artifact on any local or remote server with java -jar; it is also ready for upload to a cloud repository.
